    Lightweight Iris Recognition Module Iris Scanner Module ISO9001

    Ask Lasest Price
    Brand Name : HOMSH
    Model Number : MC20-2000
    Certification : ISO9001
    Payment Terms : T/T
    Delivery Time : 5-8 work day
    Price : Negotiated
    • Product Details
    • Company Profile

    Lightweight Iris Recognition Module Iris Scanner Module ISO9001

    Iris Recognition Device Module Compact And Lightweight, Suitable For A Variety Of Installation Environments.

    Description

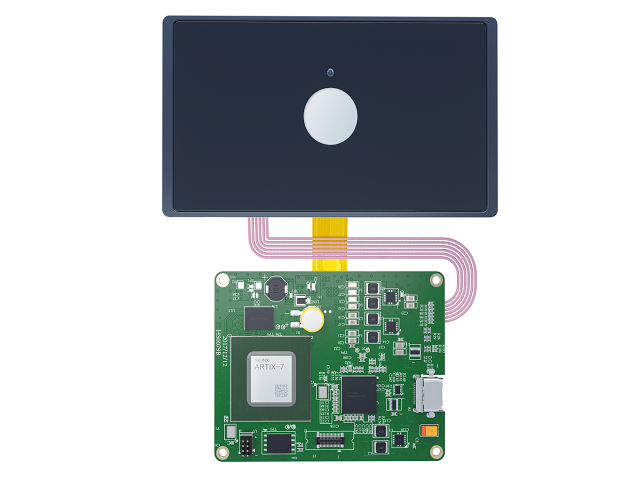

    The MC20 is a cutting-edge Iris Recognition Device designed for iris data capture and recognition. With a compact and lightweight build, this device offers fast and accurate recognition in both single-eye and dual-eye modes. The indicator light feedback assists with precise alignment. With a wide operating temperature range and compliance with international safety standards, the MC20 is suitable for various applications, ensuring secure and efficient identity verification. Whether used for access control or authentication purposes, the MC20 provides reliable and high-precision iris recognition technology.

    Functional

    • Lightweight and compact design, suitable for a variety of application scenarios
    • 2000 iris templates can be stored locally
    • Live detection, prevent malicious attacks, effectively prevent paper pictures, screen reproduction
    • The image output conforms to the international standard iris image, which is compatible with all iris products
    • Provide matching SDK, support Windows XP/7/8/10, Linux, Android and other multi-system platforms, easy to secondary development applications

    Specification

    Specification Details
    Model MC20
    Product Function Iris Capture, Iris Recognition
    Connection Interface USB 2.0
    Power 3.5W
    Product Dimensions (L*W*H) Not available (separate components)
    Weight (Typical) 52g
    Operating Distance 330mm-400mm
    Recognition Mode Single Eye/Both Eyes
    Alignment Assistance Indicator Light Feedback
    Imaging Wavelength Band 700nm~900nm
    Operating Illuminance 0~6000 Lux
    Operating Temperature -10°C~55°C
    Operating Humidity 0~93% RH

    Performance Parameters:

    Performance Parameter Details
    Spatial Resolution > 4.0 Lp/mm
    > 16 Pixels/mm
    Image Resolution 640 x 480
    Pixel Depth 8 bits/pixel
    Frame Rate 25 frames/s
    Registration time 1s
    Recognition Time 1s
    Accuracy False Acceptance Rate (FAR) 10-7
    False Rejection Rate (FRR) 10-3

    Compliance Standards:

    Compliance Standard
    Eye Safety Complies with IEC 62471 "Photobiological Safety of Lamps and Lamp Systems"
    Image Standard Complies with National Standard GB/T 33767.6-2018 for Iris Image Data
    Algorithm Performance Complies with National Standard GB/T20979-2019 "Information Security Technology - Iris Recognition System Technical Requirements"

    Application

    It can be applied to USB iris collection devices, USB iris authorized login devices, access control application devices, etc., or it can be used independently.
