"Innovative MD20-2000-TFT Iris Module: Real-Time 2.4" Display & 2000 Templates | Secure Access & Video Feedback"
Description

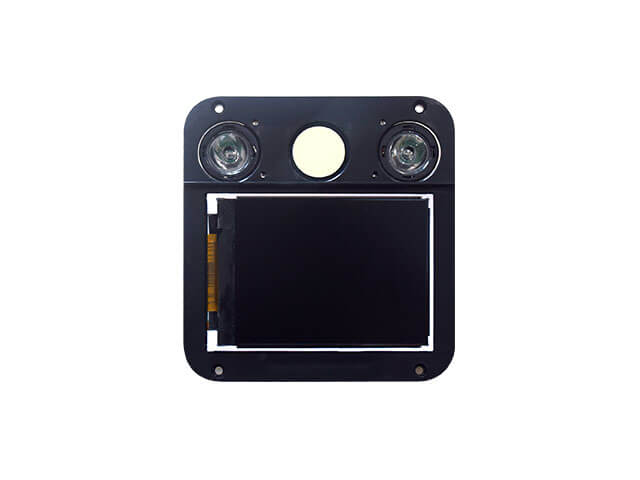

MD20-2000-TFT Iris Module: Real-Time Feedback Redefined, Pioneering Personalized Iris Experience
Unveil the future of iris recognition with the MD20-2000-TFT Iris Module, distinguished by its remarkable innovation and real-time interactive capabilities. Its unconventional 2.4-inch display provides an instant visual feedback of captured iris images, enhancing the interactive experience during the collection process while offering users immediate visual insights.
The MD20-2000-TFT Iris Module goes beyond iris acquisition; it's an immersive exploration into the world of irises. Integrated with a 2.4-inch display, it serves as both a collection instrument and a bridge between iris technology and users. Infusing technology into daily life, it opens doors to the future.
The ingeniously designed local storage for 2000 iris templates ensures worry-free user data storage. Everything you need is at your fingertips, ensuring data security at all times.
Whether for secure access or identity verification, the MD20-2000-TFT Iris Module delivers an unprecedented level of convenience. From commercial applications to institutional management, it provides a precise, rapid, and seamless experience.
The MD20-2000-TFT Iris Module redefines iris recognition, expanding the realm of possibilities. Let's step into the future together and explore the marvels of iris technology.
Functional characteristics
- The MD20-2K-TFT Iris Module, small and exquisite, caters to diverse application scenarios, delivering a fresh experience. Its 2.4-inch display screen presents captured images with clarity, providing real-time iris magic whether in the office or daily life.
- Supporting local storage of up to 2000 iris templates, data is at your fingertips. The built-in liveness detection feature effectively prevents the use of paper images and video replays, ensuring a robust defense against malicious attacks.
- Its iris image output adheres to international standards, ensuring compatibility with various iris products, granting you the convenience of iris technology. The provided matching SDK is compatible with multiple system platforms such as Windows XP/7/8/10, Linux, Android, enabling effortless secondary development.
- The MD20-2K-TFT Iris Module adopts an integrated design, featuring a standard USB 2.0 interface for easy operation and integration. Embrace the future of iris technology, starting right here.
Specification parameters
| Specification | Description |
| Model | MD20-2000-TFT |
| Product Function | Iris Collection, Iris Recognition |
| Connection Method | USB 2.0 |
| Power | 3.5W |
| Product Size (L x W x H) | 72.5mm x 77mm x 28mm |
| Weight (Typical) | 68g |
| Working Distance | 250mm - 300mm |
| Recognition Mode | Any Single Eye / Dual Eye |
| Auxiliary Alignment Mode | Video Echo Assistance |
| Imaging Band | 700nm - 900nm |
| Working Illumination | 0 - 6000 Lux |
| Working Temperature | -10°C to 55°C |
| Working Humidity | 0% - 93% RH |
| Performance Parameters | Description |
| Spatial Resolution | > 4.0 Lp/mm<br>> 16 Pixels/mm |
| Image Resolution | 640 x 480 |
| Pixel Depth | 8 bits/pixel |
| Image Frame Rate | 25 frames/s |
| Enrollment Time | 1 second |
| Recognition Time | 1 second |
| Accuracy | False Acceptance Rate (FAR) 10-7 False Rejection Rate (FRR) 10-3 |
| Compliance Standards | Description |
| Eye Safety | Complies with IEC 62471 "Photobiological Safety of Lamps and Lamp Systems" |
| Image Standard | Complies with National Standard GB/T 33767.6-2018 "Iris Image Data" |
| Algorithm Performance | Complies with National Standard GB/T 20979-2019 "Technical Requirements for Information Security Iris Recognition Systems" |
Application field
It can be applied to USB iris collection devices, USB iris authorized login devices, access control application devices, etc., or it can be used independently.
