    Iris Recognition Door Lock Development Kit HS-QSOL-MI30

    Ask Lasest Price
    Brand Name : HOMSH
    Model Number : MI30 Lock Development Kit
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T
    Delivery Time : 5-8 work day
    • Product Details
    • Company Profile

    Iris Recognition Door Lock Development Kit HS-QSOL-MI30

    Iris Recognition Door Lock Development Kit HS-QSOL-MI30 Lock Development Kit


    Description


    Lock development Kit is our company designed to help customers and developers fast
    Quickly familiar with and use of lock development and launched development kit, including the main control module, anti-demolition alarm module, MicroUSB emergency
    Charging board, reset circuit board, speaker module and other peripheral resources, users can upgrade the development board through the main control board program burning interface
    Firmware can also be developed as needed.

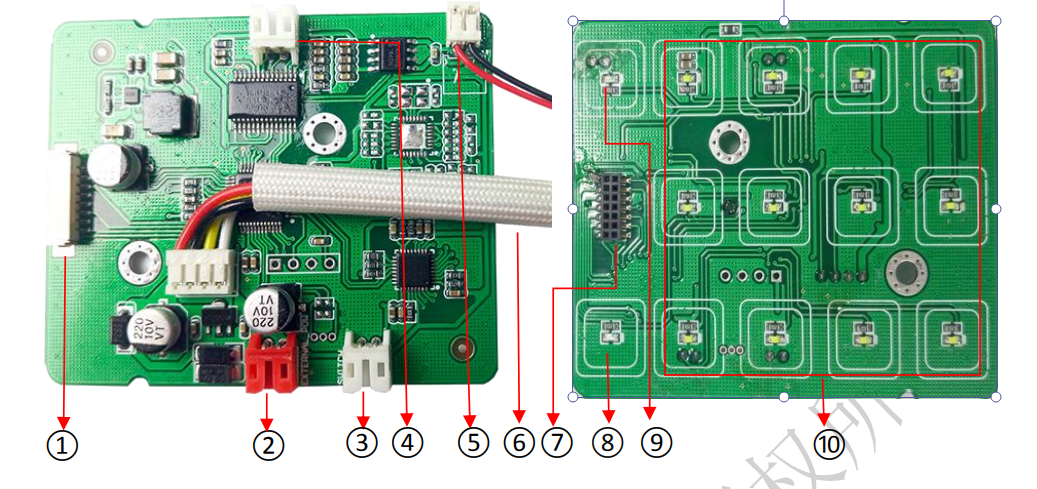

    Main control board



    Serial numberDescription
    Optical module interface for optical module power supply and data exchange
    Micro-USB emergency power port connects to the MicroUSB interface board of emergency power
    Anti-demolition alarm interface, connected to anti-demolition alarm module
    Speaker module connection port
    Lock motor connection cable
    Connect cables to the reset switch circuit board
    Touch pad connector (back of main control board)
    Alarm light. When the password is entered incorrectly or the anti-disassembly alarm switch is activated, the alarm light will flash automatically
    Low voltage alarm light, when the battery supply voltage is lower than the standard value, the low voltage alarm light will automatically light up
    Digital key signal light, blinking once when touched, non-touched when extinguished;

    Introduction to the touchpad



    Sequence numberDescription
    It is used to connect the touch board to the main control board
    0 to 9 Digit touch keys
    The "#" key is used to confirm
    The “*” key is the return key

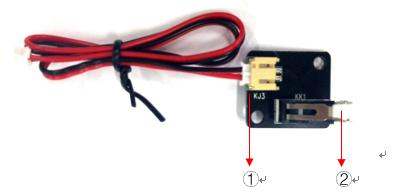

    Anti-demolition alarm circuit board



    Sequence numberDescription
    The alarm signal monitoring interface is connected to the corresponding interface of the main control board through cables
    The anti-disassembly alarm switch is in normal state when pressed and in alarm state when lifted

    Reset supply board



    Sequence numberDescription
    Reset button: Used to initialize system Settings, press the button and release the button after 5s
    The system automatically starts and completes the initialization
    Carp battery power supply interface;
    Cable port used to connect the main control board

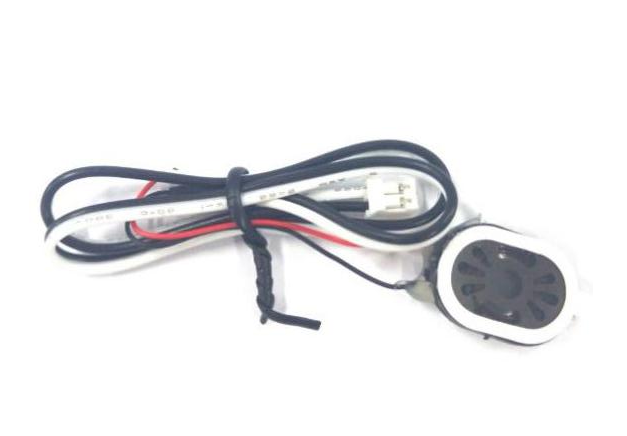

    loudspeaker

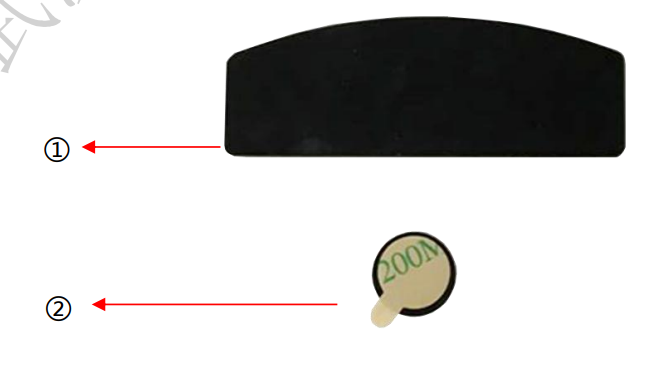

    filter



    Sequence numberDescription
    The filter eliminates the influence of visible light on the distance sensor and protects the distance sensor
    Narrow band filter eliminates the influence of visible light on infrared imaging

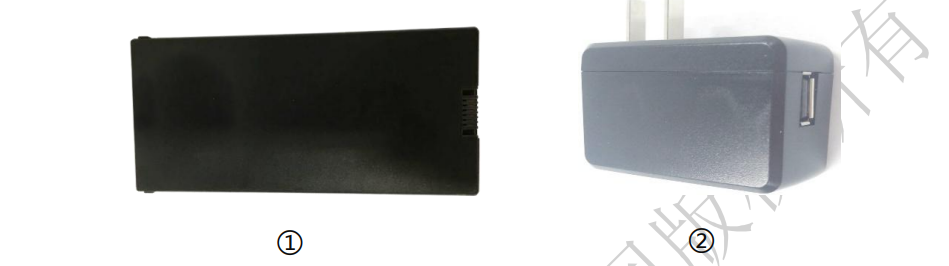

    Lithium battery and charger



    Sequence numberDescription
    3.7v,18200mAh battery, charging with MicroUSB interface
    Lithium battery charger (USB cable with MicroUSB interface)
    Input :100 to 240v 50 to 60Hz 0.28A
    Output :5v == 2A

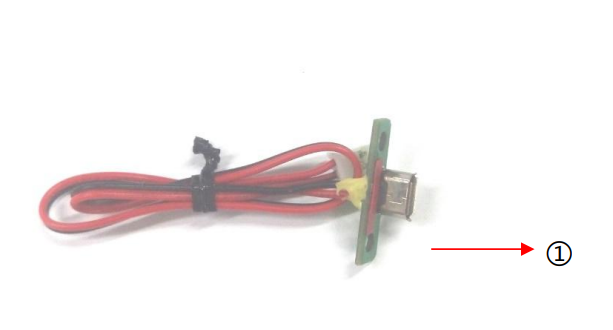

    MicroUSB Emergency power supply board



    Sequence numberDescription
    MicroUSB interface

    Application


    Help developers quickly get familiar with and use the lock development kit, take advantage of the rapid development of iris recognition lock products.
