    Electronic Material Iris Scanner Door Lock BMP Format 5V USB Powered

    Ask Lasest Price
    Brand Name : HOMSH
    Model Number : C20e Electronic Material
    Certification : ISO9001
    Price : Negotiated
    Payment Terms : T/T
    Delivery Time : 5-8 work day
    • Product Details
    • Company Profile

    Electronic Material Iris Scanner Door Lock BMP Format 5V USB Powered

    C20e Electronic Material Iris Scanner Door Lock - High Quality Iris Image

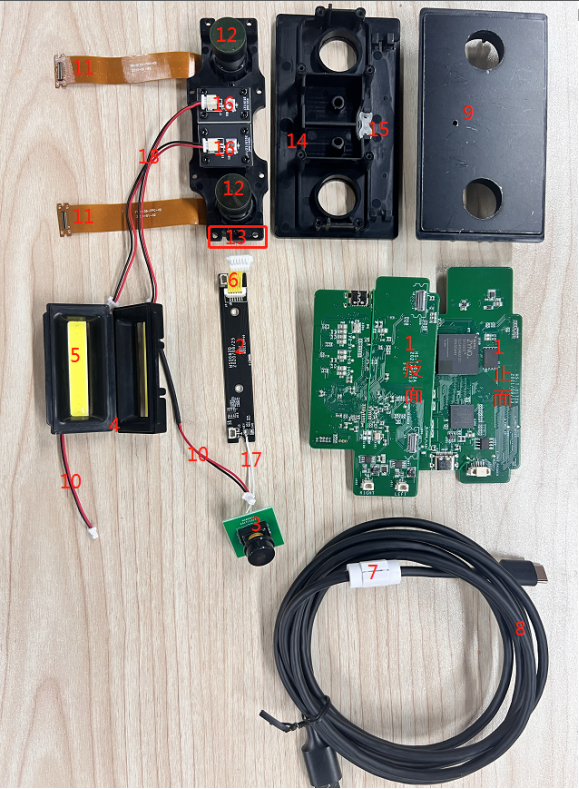

    Electronic material detail

    Electronic Material Iris Scanner Door Lock BMP Format 5V USB Powered

    Electronic Material Iris Scanner Door Lock BMP Format 5V USB Powered

    Specification parameter

    Category Specifications
    Product Name C20e Electronic Material
    Liveness Detection Equipped with liveness detection to prevent iris photos, iris videos, and other forms of fake attacks
    Iris Image Format BMP Format
    Iris Image Size Single iris image width of 640 pixels, height of 480 pixels
    Iris Image Quality Meets the technical requirements for iris collection equipment for criminal investigation operations (used for the construction of iris databases for systems with tens of millions of criminal experts), as detailed below:
    Device Resolution Device resolution is not less than 8 lp/mm within the effective collection range
    Iris Image Sampling Resolution Not less than 21 pixels/mm
    Iris Image Gray Levels Iris images are grayscale images, with a depth of not less than 8 bits per pixel, meaning each pixel in the image has a quantization level of not less than 256 levels
    Iris Image Gray Level Utilization Not less than 6 bits
    Iris Image Iris Radius Not less than 100 pixels
    Iris-Conjunctiva Contrast Not less than 10
    Iris-Pupil Contrast Not less than 30
    Iris Effective Area Ratio Greater than 60%
    Margin Allowance The distance from the fitted circle of the iris outer boundary to the upper, lower, left, and right boundaries of the iris image is not less than 0.5ri, 0.5ri, 1.0 ri, and 1.0 ri, respectively, where ri is the iris radius.
    Infrared Auxiliary Illumination 2*850nm LED, <100W/m3
    Infrared Safety Standards Complies with the American standard ANSI RP-27.1-96 and the highest European standard IEC/EN62471
    Average Capture Time ≤1s
    Operating Mode and Interface Connected to PC via USB interface, controlled by upper-level software, and supports automatic binocular or arbitrary monocular capture
    Operating Voltage 5V USB Powered
    Product Power Consumption <3.5W

    Packaging Specifications

    Specification Details
    Quantity of Products 500 sets
    Mainboard and Lens Carton Size 600mm x 400mm x 500mm
    Mainboard and Lens Product Weight Approximately 74.5 kilograms
    USB Cable Carton Size 501mm x 300mm x 280mm
    USB Cable Weight Approximately 30.92 kilograms
